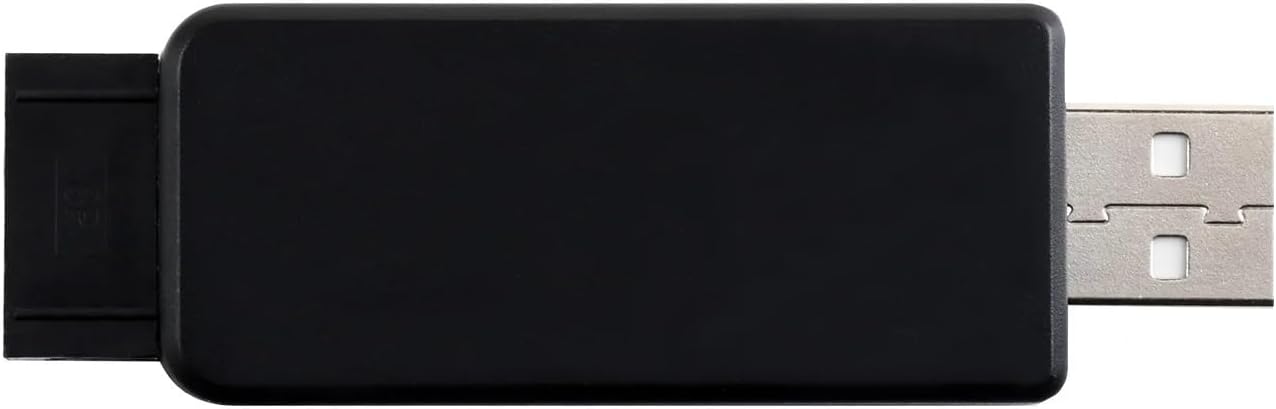

1Pcs Industrial USB to TTL Converter Adapter, CH343G Onboard, UART Port, Multi Protection & Systems Support

Signal ConvertersDESCRIPTIONIndustrial USB TO TTL Converter, CH343G Onboard, Multi Protection Circuits, Multi Systems SupportUSB TO TTLCONVERTER CH343G | Stable Transmission | Multi Devices | Multi SystemsIndustrial Grade QualityFeatures At A GlanceOnboard resettable fuse and TVS diode, providing protections including over-current, over-voltage, backward-proof, and ESD protection, improving shock resistance, safe and stable communicationsOnboard IO protection circuit for surge suppressOnboard TTL serial port 3.3V and 5V voltage level switch, allows selecting TTL level3x LED indicators for easily checking power connection and signal TX/RX statusesQuality plastic case with dull-polish surface, well-craftedIDC connector with fool-proof designSpecificationsPRODUCT CATEGORYIndustrial USB TO TTL converterHOST PORTUSBDATA RATE50bps ~ 6MbpsDEVICE PORTUARTUSB PORTConnector: USB-AProtection: resettable fuse, ESD protectionUART PORTConnector: 8PIN fool-proof headerProtection: IO protection diodeINDICATORPWR: power indicator, turns red when USB voltage is detectedTXD: TX indicator, turns red while the USB port is sending dataRXD: RX indicator, turns red while the device port is receiving dataMultiple Protection, Safe And StableOnboard Resettable Fuse And TVS Diode, Providing Protections Including Over-Current, Over-Voltage, Backward-Proof, And ESD Protection, Improving Shock Resistance, Safe And Stable CommunicationsMultiple Systems SupportCompatible With Popular Systems Like Win7/8/8.1/10/11, , Linux, Android...Three LED IndicatorsEasily Checking The Operating Status, Convenient For Programming / DebuggingUSB Signal & Pinouts Definition5V5V outputVCC33V or 5V output configured by switchGNDGroundTXDConnecting to MCURXRXDConnecting to MCUTXRTSConnecting to MCUCTSCTSConnecting to MCU.RTSOutline DimensionsResources & ServicesWikiwwwwavesharecomwikiUSB_TO_TTL_(B)Selection GuidePARTNUMBERUSB TO TTLUSB TO TTL (B)CHIPFT232CH343GDATA RATE300bps ~ 3Mbps50bps ~ 6MbpsHARDWARE FLOWsupportedOS SUPPORTWin7/8/8.1/10/11, , Linux, Android, WinCEWin7/8/8.1/10/11, , Linux, AndroidUSB PORTConnector: USB-AProtection: resettable fuse, ESD protectionUART PORTConnector: 8PIN fool-proof headerProtection: IO protection diodeINDICATORSPWR: power indicator, turns red when USB voltage is detectedTXD: TX indicator, turns red while the USB port is sending dataRXD: RX indicator, turns red while the device port is receiving dataPACKAGE CONTENTWeight:0.021 kgUSB TO TTL (B) x18PIN fool-proof wire x1==========Model Number : USB TO TTL (B)PRODUCT CATEGORY : Industrial USB TO TTL converterHOST PORT : USBDATA RATE : 50bps ~ 6MbpsDEVICE PORT : UARTUSB PORT : Connector: USB-A Protection: resettable fuse, ESD protection
